Package Compressor：Package Compressor
PRODUCT
-

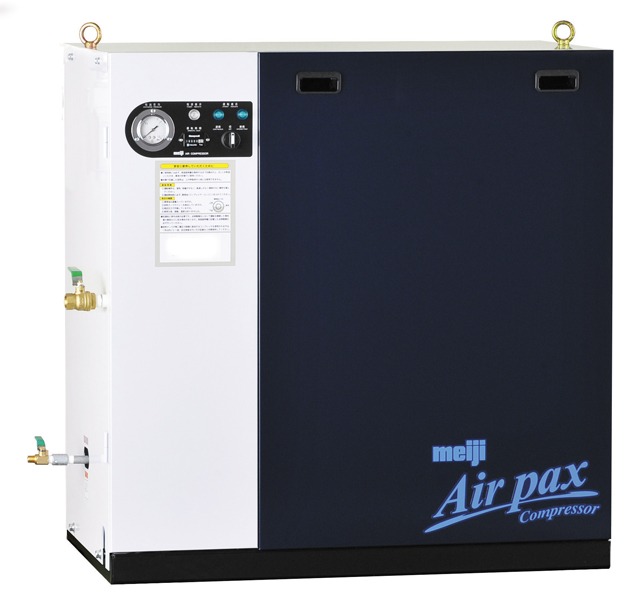

APKH-37C
-

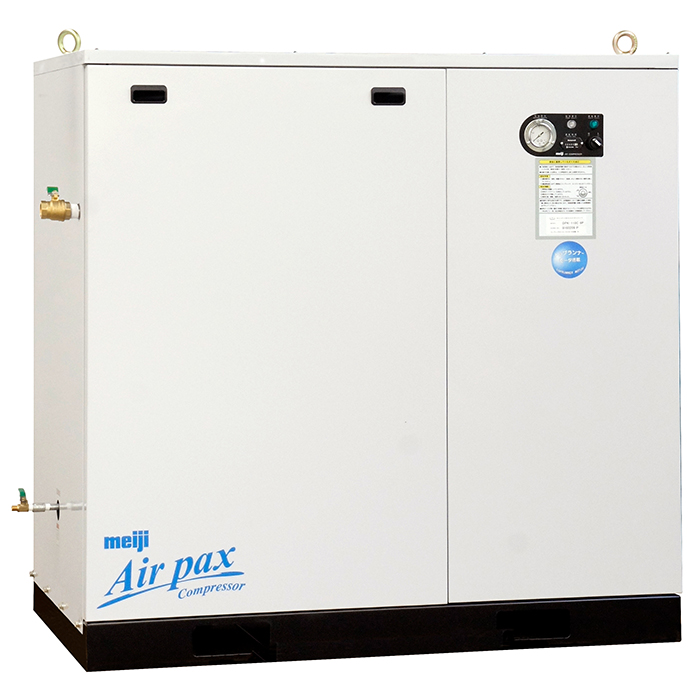

APKH-110C
Features
Package Compressor AIR PAX
- ●Silent package compressor which are sound / vibration proof.
- ●Control method is pressure switch type which cuts unnecessary electric power(0.75～3.7kW).
- ●Automatic operation control system which automatically switches continuous and intermittent
- operation depending on usage(5.5～15kW).
- ●High efficiency 2 stage compressor installed
- (Excluding APK-D44A and models with power consumptions from 3.7～15kW)
- ●Low vibration with silent design.
Specifications
| Model No. | APKH-37C | APKH-55G | APKH-75E | APKH-110D | ||
|---|---|---|---|---|---|---|
| Motor output | kW[ps] | 3.7[5] | 5.5[7.5] | 7.5[10] | 11[15] | |
| Operating pressure | MPa[kgf/cm2] | 1.18～1.37[12～14] | ||||
| Free air delivery | L/min | 370 | 590 | 760 | 1155 | |
| Basic Compressor |
Rotating speed | rpm | 910 | 870 | 860 | |
| Model No. | BT-37P | BT-55H | BT-75GP | BT-110DP | ||
| Air tank capacity | L | 39 | 91 | |||
| Air outlet dia.×qty. | B | Rc1/2×1 | Rc3/4×1 | Rc1×1 | ||
| Approx. dimensions | L×W×H(mm) |
855(940) ×651 ×871(922) |
1126(1200)×801×1137(1197) |
1266(1305)×949×1271(1333) |
||
| Noise level | dB(A) | 55 | 61 | 57 | 59 | |
| Weight(including motor) | kg | 187 | 315 | 336 | 440 | |
