PH Series (Manual Type)

Supplying Equipment：Paint Pressure Feed Tanks

A paint pressure feed tank greatly improves work efficiency for painting large surface areas,

when working in elevated locations, and for continuous automatic painting.

Tanks are available in capacities ranging from 2.0 to 50 liters.

Two different types of paint stirring systems are available depending on the type of paint to be used.

For comparatively low sedimentation paint.

For organic solvent-based paints which are subject to color separation or sedimentation.

▽ Inner Tanks for Paint Pressure Feed Tanks
Model No.		PC-10	PC-30	PC-50	PC-8S	PC-30-S	PC-50-S
Capacity	L	10	27	45	7	27	45
Stainless		-			●

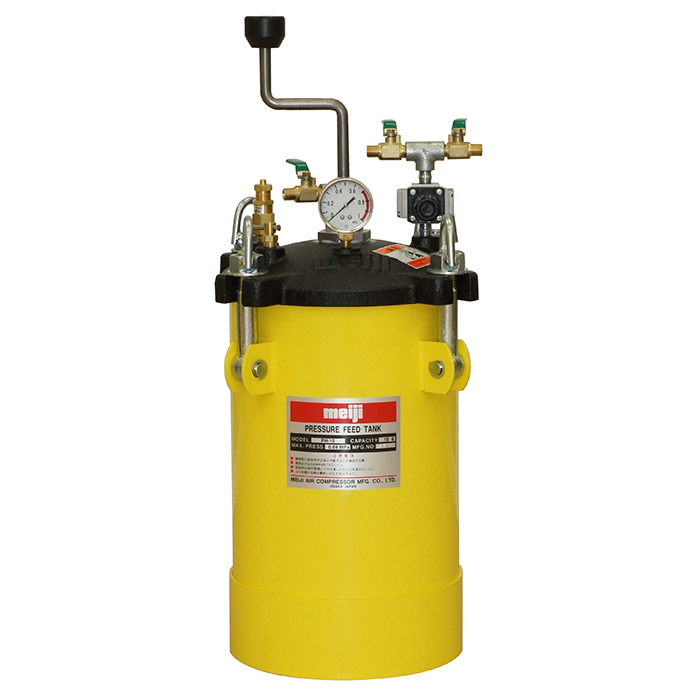

▼Paint Pressure Feed Tanks
Model No.		PH-10	PH-30B 　　<PH-30SB>
Capacity	L (gal)	10 (2.6)	30 (7.9)
Mixing system		Manual
Paint outlet	(dia.×qty)	G1/4×1	G3/8×1
Air intlet	(dia.×qty)	G1/4×2
Max. operating pressure	MPa (PSI)	0.69 (100)	0.19 (28)
Approx.dimensions (Width×height)	mm (in)	310×643 (12.205×25.315)	454×710 (17.874×27.953)
Inner tank		PC-10 Included	Not Included
Weight	kg (lbs)	20 (44.09)	27 (59.52)
Measure-ment	M³	0.09	0.16
On S models, Stainless steel passage for waterborne compatibilty. A multi-purpose model with 30-liter, 0.35MPa(51PSI) specifications is also available by special order.
