Gravity Cup

Apparatus Concerned：Paint Cups

Improved flow and paint removal, making wash-up quick and easy.

A freely adjustable joint allows the cup to be adjusted to any angle

while mounted on the gun.

▲Freely adjustable joint

Even if changing the gun angle according to the coating surface ,

it is possible to change the cup angle with one touch.

Realizes smooth layering without taking eyes off the paint line.

A convenient gun stand makes it possible to temporarily stop work or

add paint wherever a flat surface is available.

▲Gun Stand

Air hose and paint hose are connected close at hand to improve work efficiency.

A builtin 100-mesh filter effectively filters the paint.

One Touch lock structure in packing free for 4GF-U Type.

Use the Meiji V-1 viscosity cup, which is based on the No.4 Ford viscosity cup, to measure the viscosity of the paint.

▽Viscosity Cup
Viscosity	Pa.s	mPa.s (cps)	Ford Cup#3	Ford Cup#4 Meiji V-1 Viscosity Cup	Krebs Units Ku	Zahn#1	Zahn#2	Zahn#3	Zahn#4	Zahn#5
Low	0.01	10	-	5	-	30	16	-	-	-
	0.015	15	-	8	-	34	17	-	-	-
	0.02	20	12	10	-	37	18	-	-	-
	0.025	25	15	12	-	41	19	-	-	-
	0.03	30	19	14	-	44	20	-	-	-
Medium	0.04	40	25	18	-	52	22	-	-	-
	0.05	50	29	22	30	60	24	-	-	-
	0.06	60	33	25	33	68	27	-	-	-
High	0.07	70	36	28	35	-	30	-	-	-
	0.08	80	41	31	37	-	34	-	-	-
	0.09	90	45	32	38	-	37	10	-	-
	0.1	100	50	34	40	-	41	12	10	-
	0.12	120	58	41	43	-	49	14	11	-
	0.14	140	66	45	46	-	58	16	13	-
	0.16	160	-	50	48	-	66	18	14	-
	0.18	180	-	54	50	-	74	20	16	-
	0.2	200	-	58	52	-	82	23	17	10
	0.22	220	-	62	54	-	-	25	18	11
	0.24	240	-	65	56	-	-	27	20	12
	0.26	260	-	68	58	-	-	30	21	13
	0.28	280	-	70	59	-	-	32	22	14
	0.3	300	-	74	60	-	-	34	24	15
●1Pa.s=10poise, 1mpa.s=1cps, 1Pa.s=1,000cps

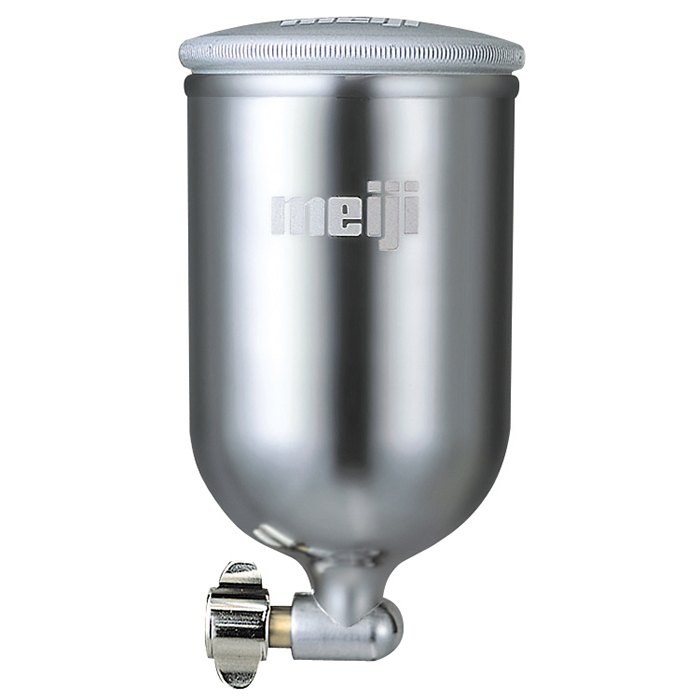

▼Gravity Paint Cup
Model No.		1G-2	1G-2U	2GD	4GD	4GF-U	4GB-U
Type		Gravity cup
Capacity	L (cc)	0.15 (150)	0.25 (250)	0.45 (450)
Coupling nut		G1/4
Applicable spray guns		F55-GR, F55-G	F110-G, F110L-G, F-ZERO, FINER-FORCE, FINERⅡ PLUS, FINER SPOT
Weight	g (lbs) [oz]	90 (0.198) [3.2]	101 (0.222) [3.6]	113 (0.249) [4.0]	200 (0.441) [7.1]	185 (0.408) [6.5]	195 (0.430) [6.9]
Measurement	m³	0.07/40PC

Model No.		4GPA-U	4G-TA	6CP
Type		Plastic gravity cup	Fluorine resin coating gravity cup	Plastic gravity cup
Capacity	L (cc)	0.45 (450)		0.6 (600)
Coupling nut		G1/4		G3/8
Applicable spray guns		F110-G, F110L-G, F-ZERO, FINER-FORCE, FINERⅡ PLUS, FINER SPOT		FINER-CORE, F410-G
Weight	g (lbs) [oz]	170 (0.375) [6.0]	220 (0.485) [7.8]	171 (0.377) [6.0]
Measurement	m³	0.07/40PC		0.07/15PC
