Hand Spray Guns：Extension Type
PRODUCT
-

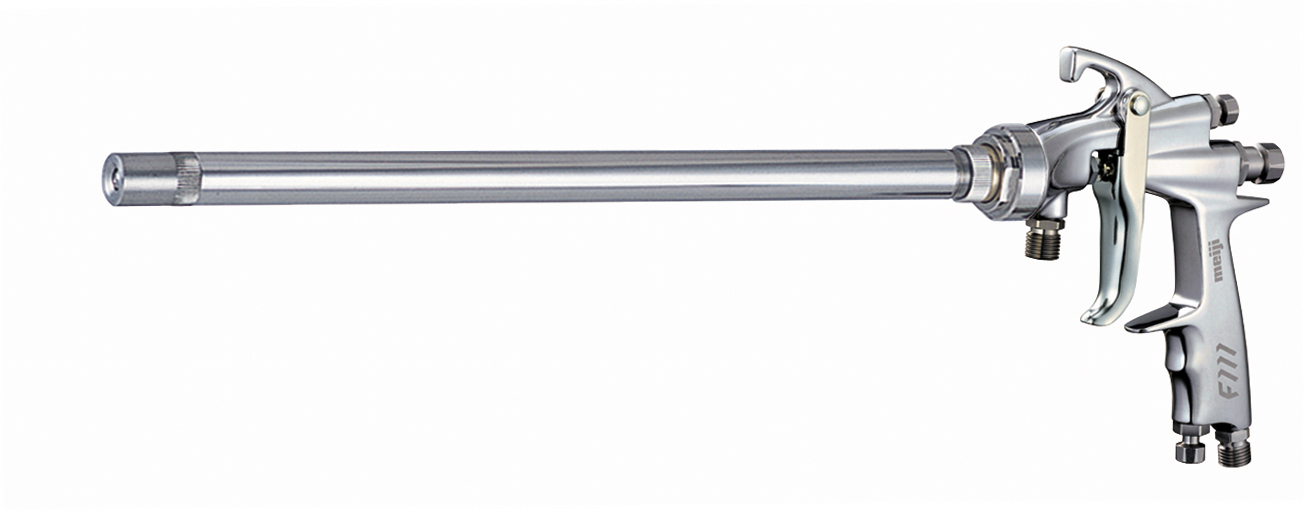

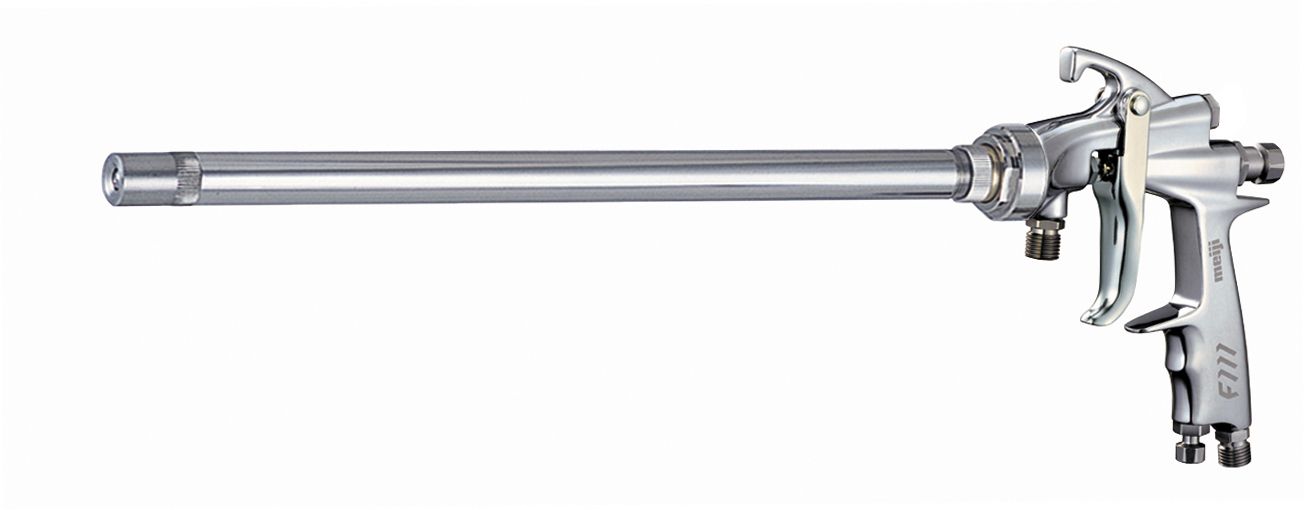

F111-PX17L
Features
INSIDE PAINT TYPE

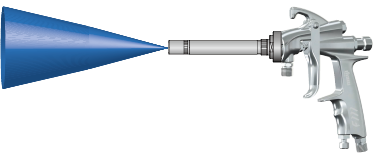

Model F111-PX17L can spray both full cone and hollow cone in adjusting the position of pipe place,
and it is suitable for spraying inside of the pipe in less than φ300mm.
Remarks |
| ●Head angle cannot be changed when the spray gun is in use, and shall be changed after cleaning the paint circuit with no fluids inside. Due to its design and structure, please avoid changing the angle frequently. ●When the spray gun is in use, please do not loosen the Air cap nut. When changing direction of Air cap, Air cap itself shall be turned without loosening the Air cap nut. ●Fluid viscosity shall be less than 30sec for Pressure type, and less than 20sec in case of Suction and Gravity type by using Meiji V-1 model viscosity cup. Fluids with high viscosity may result in less ejection amount and for PX17L, spray may not be in hollow cone. |
Specifications
| Model No. | F111-PX17L | |||
|---|---|---|---|---|
| Full cone | Hollow cone | |||
| Type | Pipe inside spraying extension gun | |||
| Paint feed system | Pressure | |||
| Nozzle bore |
mm (in) |
1.3 (0.051) |
||
| Spraying pressure |
MPa (PSI) |
0.3 (44) |
||
| Air consumption |
L/min (cfm) |
180 (6.4) |
||
| Paint spraying volume | mL/min | 115 | 300 **115 | |
| Maximum effective pattern width |
mm (in) |
100 (4.330) |
300 **250 (11.811 **9.843) |
|
| Required compressor output | kW | 1.5 | ||
|
Head angle and inner dia. into which head can be inserted |
mm (in) |
0°:20(straight only) (0.787) |
||
|
pipe length |
mm (in) |
500 1000 1500 1800* (19.685 39.370 59.055 70.8666) |
||
| Weight |
g (lbs) [oz] |
745 (1.64) [26.3] |
||
| Standard paint cup | Paint pressure feed tanks, diaphragm paint pumps | |||
| ●Pipe length with mark * is the maximum length. Use of the longer pipe will result in reducing paint spraying volume. |
||||
